Product Features
Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff

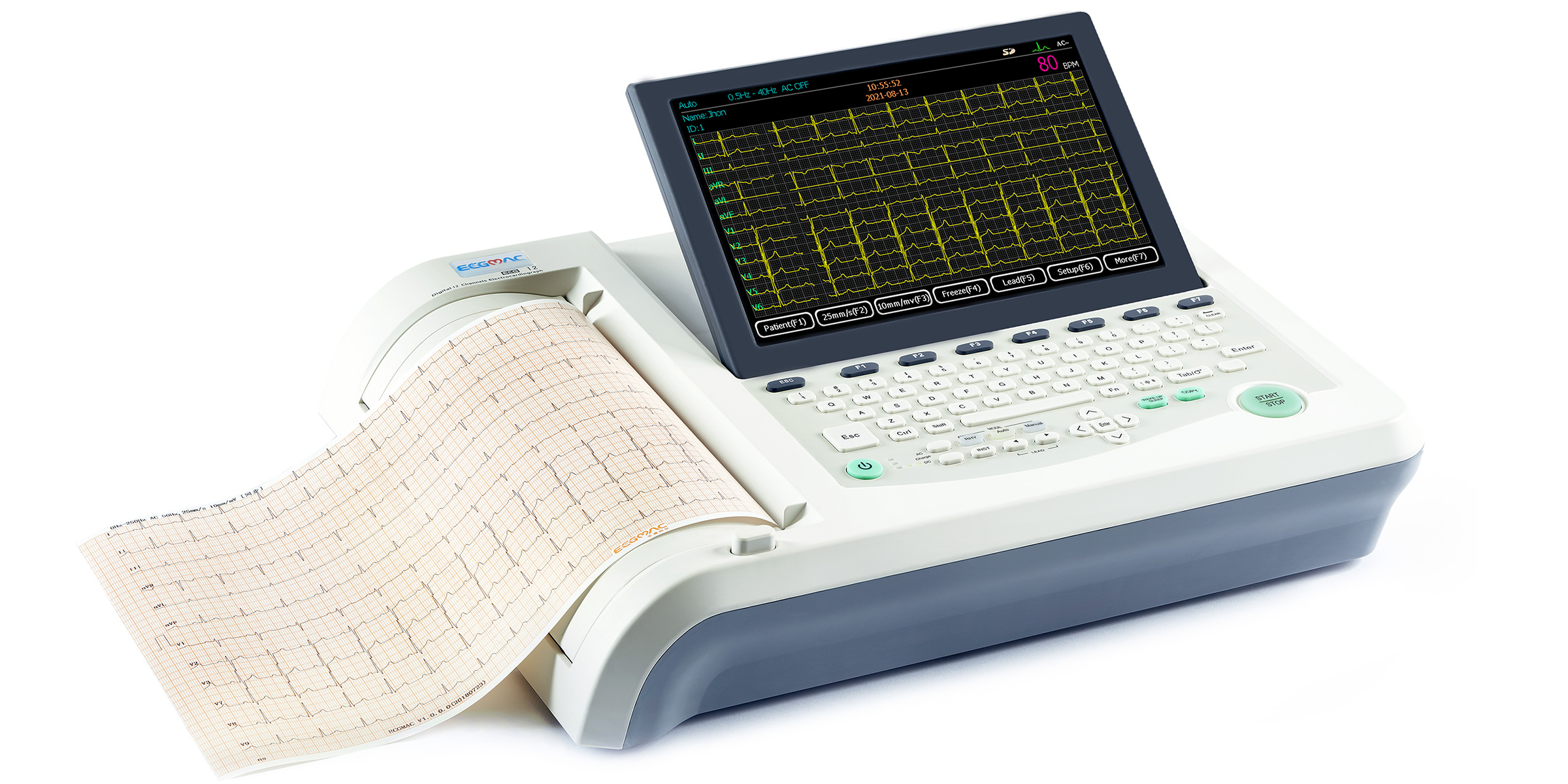

EM-1201
Twelve-channel ECG
使用教程
-
Large Foldable LCD Display, clear and intuitive
10 inch TFT color display, which can be folded from 0-90° Background with grid, 12 leads ECG can be displayed on the same screen
-
Peripherals and Communications
Integrated SD card slot and USB port for connection to barcode scanner, wireless network adapter, U-Disk, SD card, keyboard
-
Ergonomic Design
Full alphanumeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry
-
Flexible Printing Solutions
Built-in high-resolution thermal printer, supports roll and Z-fold paper. Supports external USB Printer and Network Printer
Seamless Connectivity
- Multiple format reports export, such as PDF, JPG, BMP, EM-XML, SCP, DICOM, FDA-XML
- ECG data can be imported to ECG device via SD card and U Disk

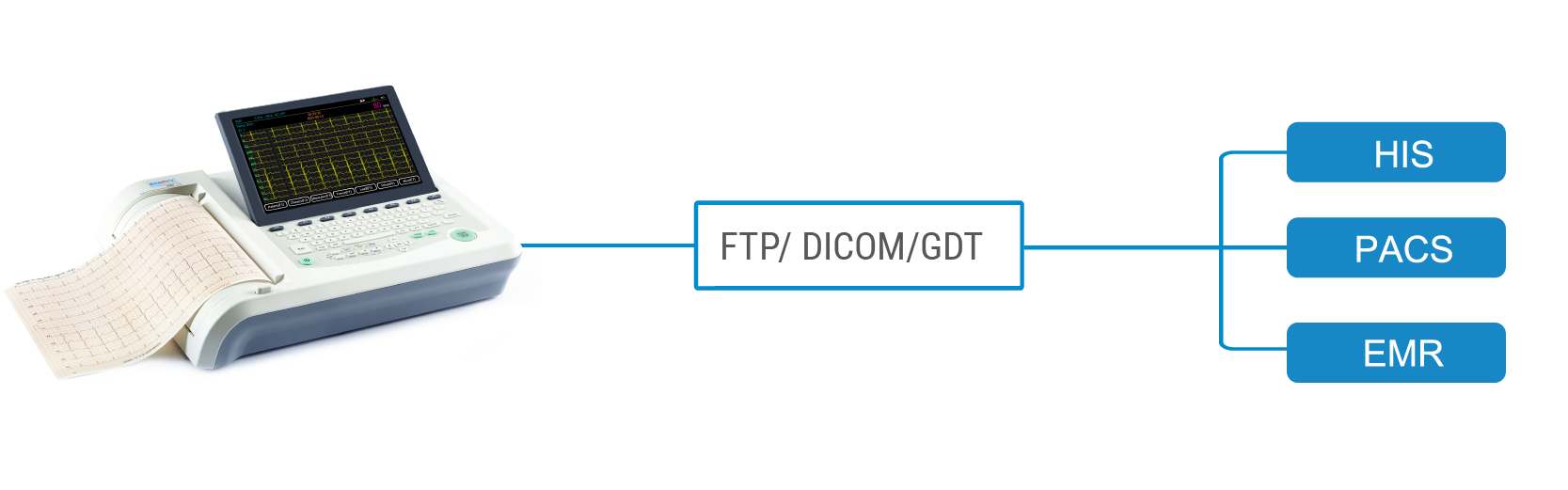

- Data access with HIS/ PACS/ EMR system based on FTP /DICOM* standard protocol
- Patient information can be retrieved from the worklist*
Software Function
- Simultaneous 12 leads ECG acquisition and display
- View and print ECG data through PC without installing extra software
- Signal quality detection, indicating the poor signals, to ensure recorded signal quality
- Long-term real-time ECG waveform freezing and review to assist diagnosis
- Accurate ECG Algorithm Program verified by European CSE database, efficiently assists physicians in analysis and diagnosis
