Product Features
Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff
EM-1201A
Twelve-channel ECG
使用教程
-
Large Foldable LCD Display, clear and intuitive
10 inch TFT color display, which can be folded from 0-90° . Background with grid, 12 leads ECG can be displayed on the same screen
-
Built-in Lithium Battery, Large Storage Capacity
Built-in rechargeable lithium high capacity battery, Local internal memory up to 1000 ECGs
-
Peripherals and Communications
Integrated SD card slot and USB port for connection to barcode scanner, wireless network adapter, U-Disk, SD card, keyboard
-
Flexible Printing Solutions
Built-in high-resolution thermal printer, supports roll and Z-fold paper Supports external USB Printer and Network Printer
Technical Specification
- Quickly
DC offset voltage >±980mV, quickly and stably collects and prints high-quality waveforms, saving time
- Stronger
CMRR > 120dB, Noise level ≤ 10μV, stronger anti-interference ability and signal-to-noise ratio
- Wider
Wider frequency response 0.01Hz~350Hz, which can effectively capture ECG signals that are more meaningful to children
- Accurately
Sampling rate 32000sps/channel, A/D Converter 24bits, tiny pacing signals can be accurately detected
Reliable Performance
- Simultaneous 12 leads ECG acquisition and display
- View and print ECG data through PC without installing extra software
- Signal quality detection, indicating the poor signals, to ensure recorded signal quality
- Long-term real-time ECG waveform freezing and review to assist diagnosis
Seamless Connectivity
- Multiple format reports export, such as PDF, JPG, BMP, EM-XML, SCP, DICOM, FDA-XML

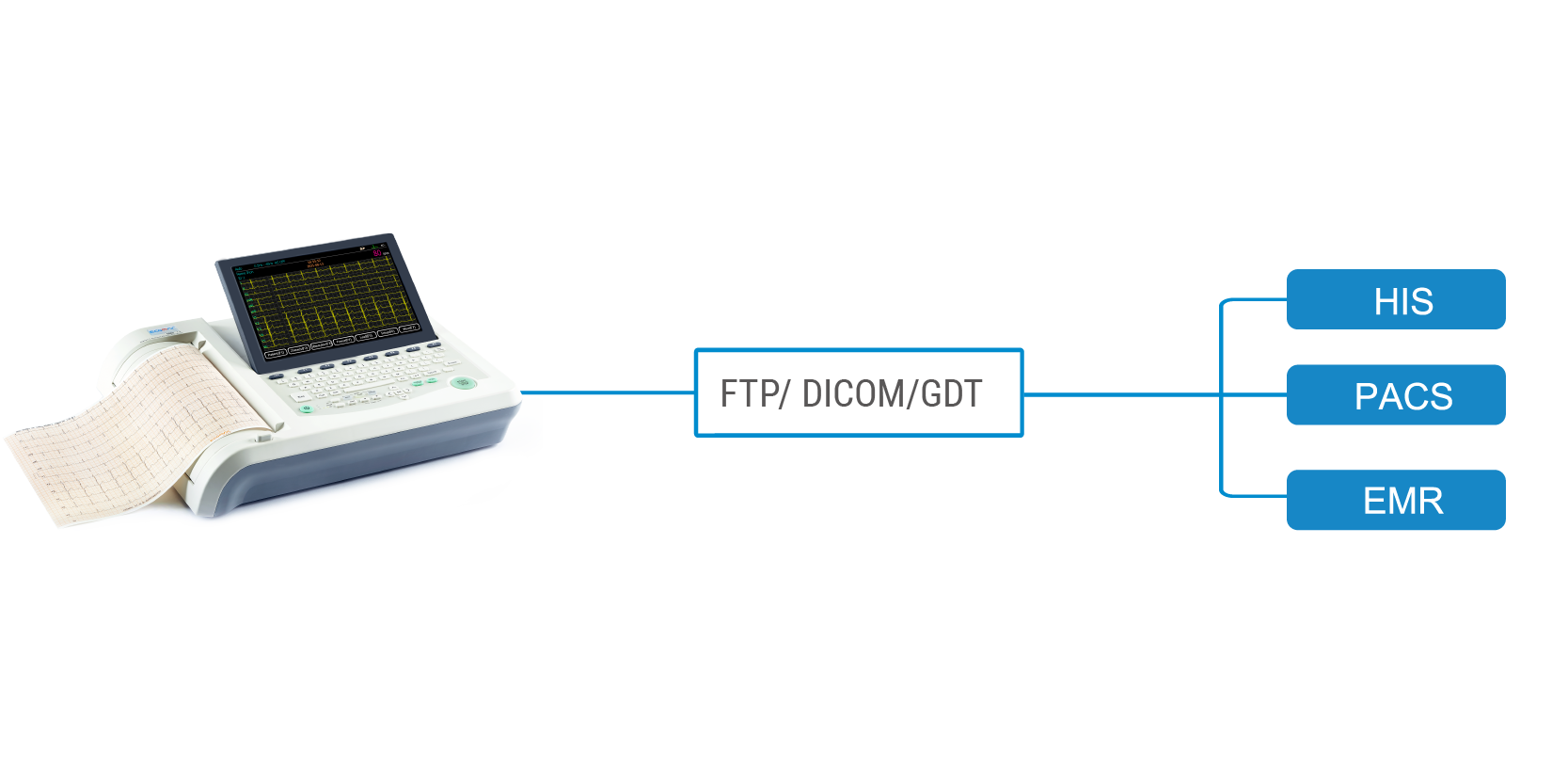

- Data access with HIS/ PACS/ EMR system based on FTP/ DICOM/ GDT standard protocol( optional)
- Patient information can be retrieved from the worklist / GDT( optional)
