Product Features
PE-1204A
Bluetooth ECG
使用教程
-

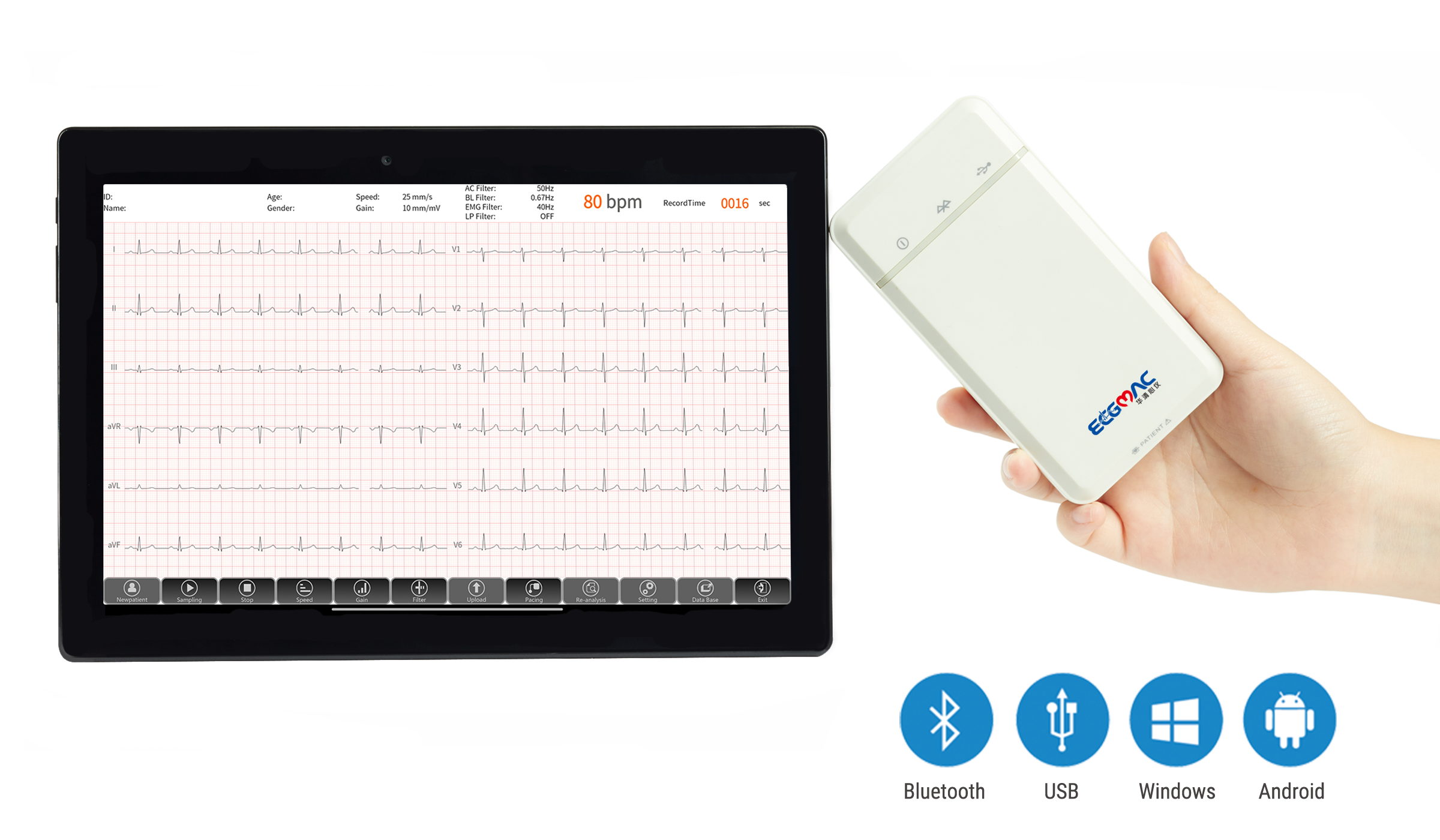

Supports Wired and Wireless ECG Acquisition
Lightweight and portable. Supports USB wired and Bluetooth wireless ECG acquisition
-
Simultaneous 12 Leads ECG Acquisition
Supports 12 leads and 9 leads acquisition modes. Compatible with Windows and Android operating system
-
Pre-sampling
Supports waveform pre-sampling for better control of waveform quality,pre-sampling time can be set
-
Stable Signal Quality
Comprehensive filters to ensure no waveform distortion while eliminating interference. ECG anti-aliasing technology provides high-quality ECG waveform
High-quality ECG Signal Acquisition
- DC offset voltage >±900mV, quickly and stably collects and prints high-quality waveforms, saving time
- CMRR > 120dB, Noise level ≤ 10μV, stronger anti-interference ability and signal-to-noise ratio
- Wider frequency response 0.01Hz~350Hz, which can effectively capture ECG signals that are more meaningful to children
- Sampling rate 32000sps/channel, A/D Converter 24bits, tiny pacing signals can be accurately detected
Powerful Aoftware Functions
- Supports long-time waveform review, waveform and report preview
- High-precision measuring ruler and parallel ruler
- Supports waveform zoom, waveform calibration, etc.
- Supports limb lead or chest lead correction, effectively reduce secondary acquisition caused by misuse
- Accurate ECG Algorithm Program verified by European CSE database, efficiently assists physicians in analysisand diagnosis
12 Leads Mode
6 Leads Mode
Re-analysis
System Settings

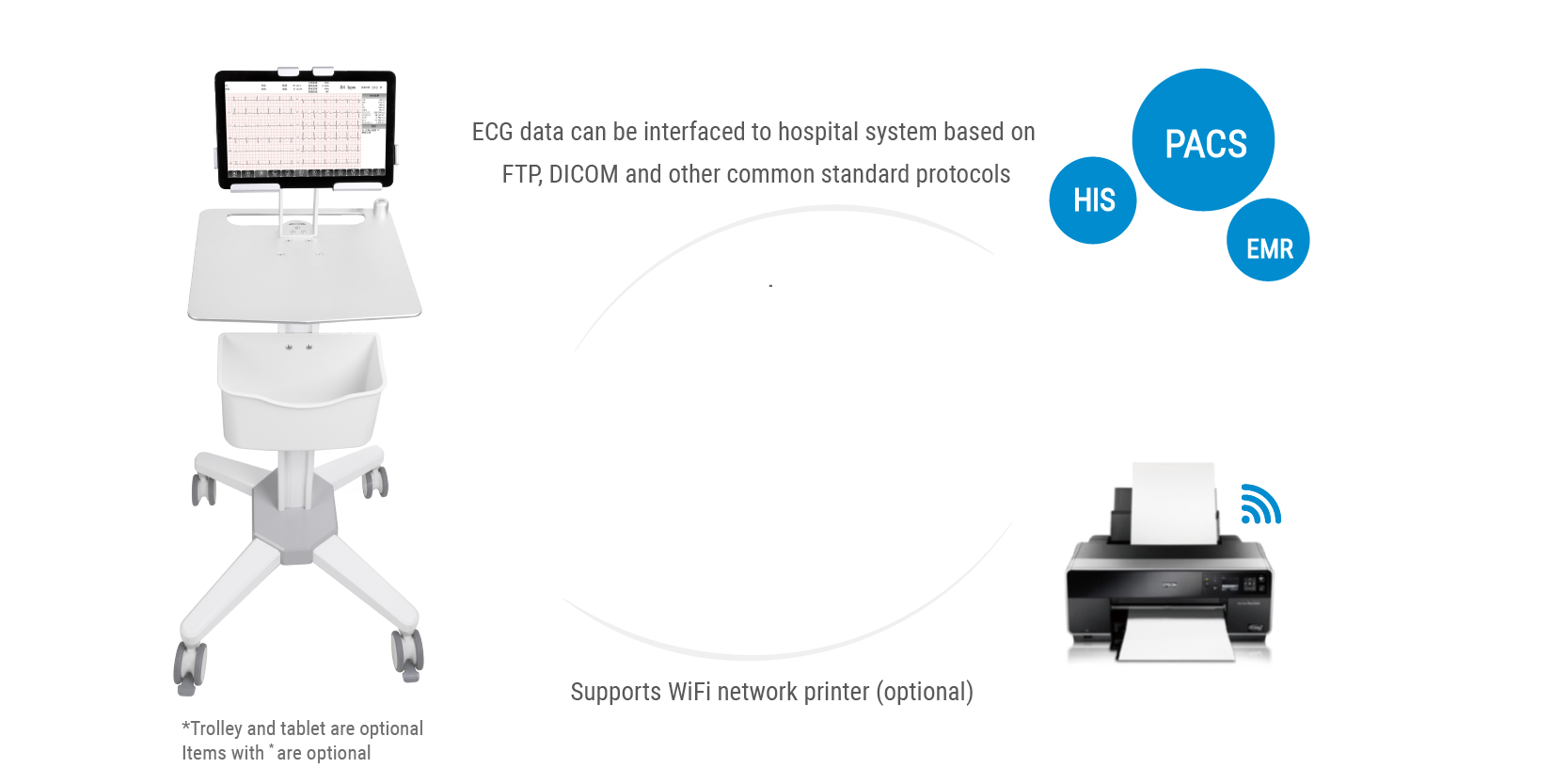

Seamless Connectivity
- Supports PDF, JPEG, BMP, FDA-XML*, EM-XML, SCP*, DICOM and other output formats
- With the Worklist function, one-click extraction of patient information to be checked from HIS and PACS system, reducing manual entry (optional)
